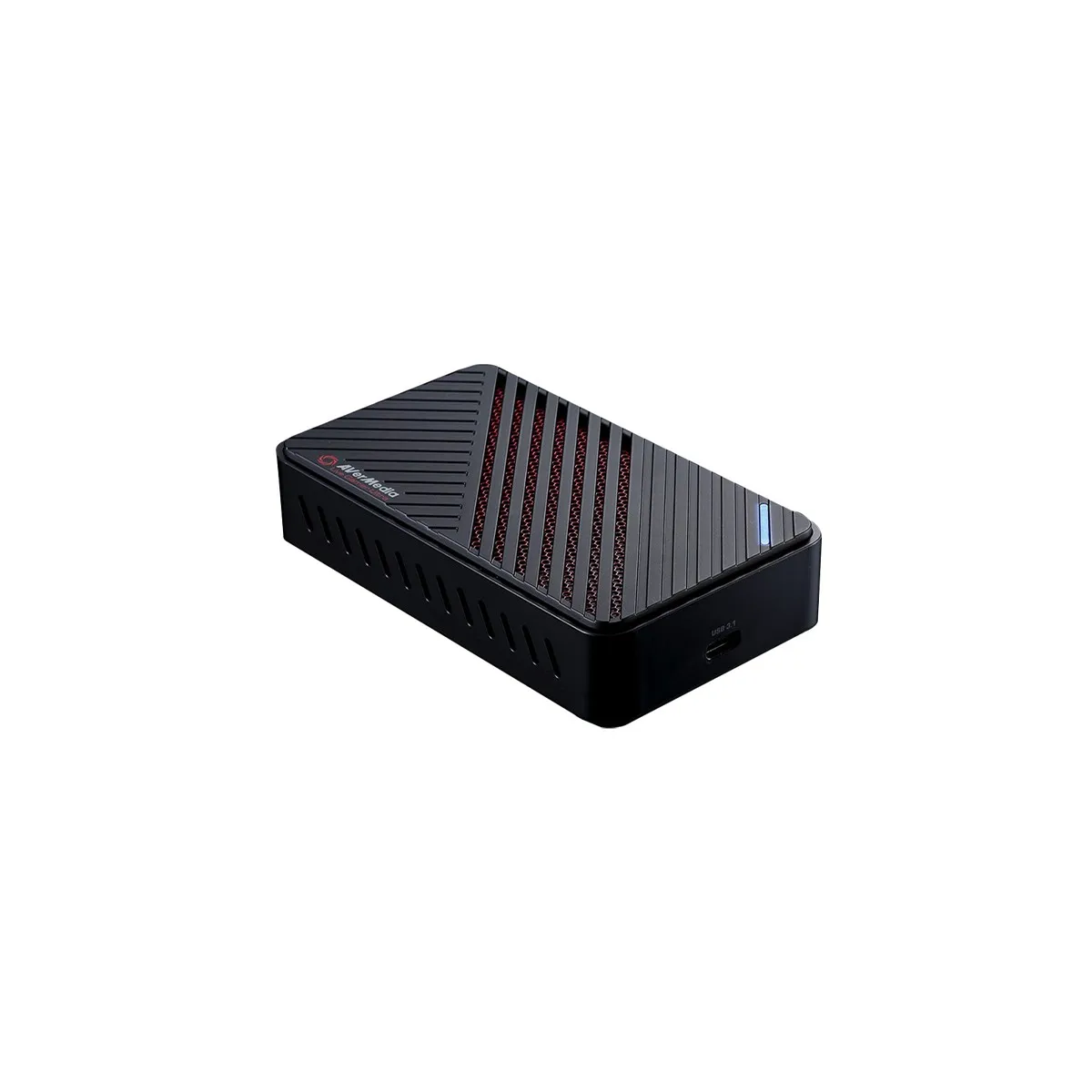

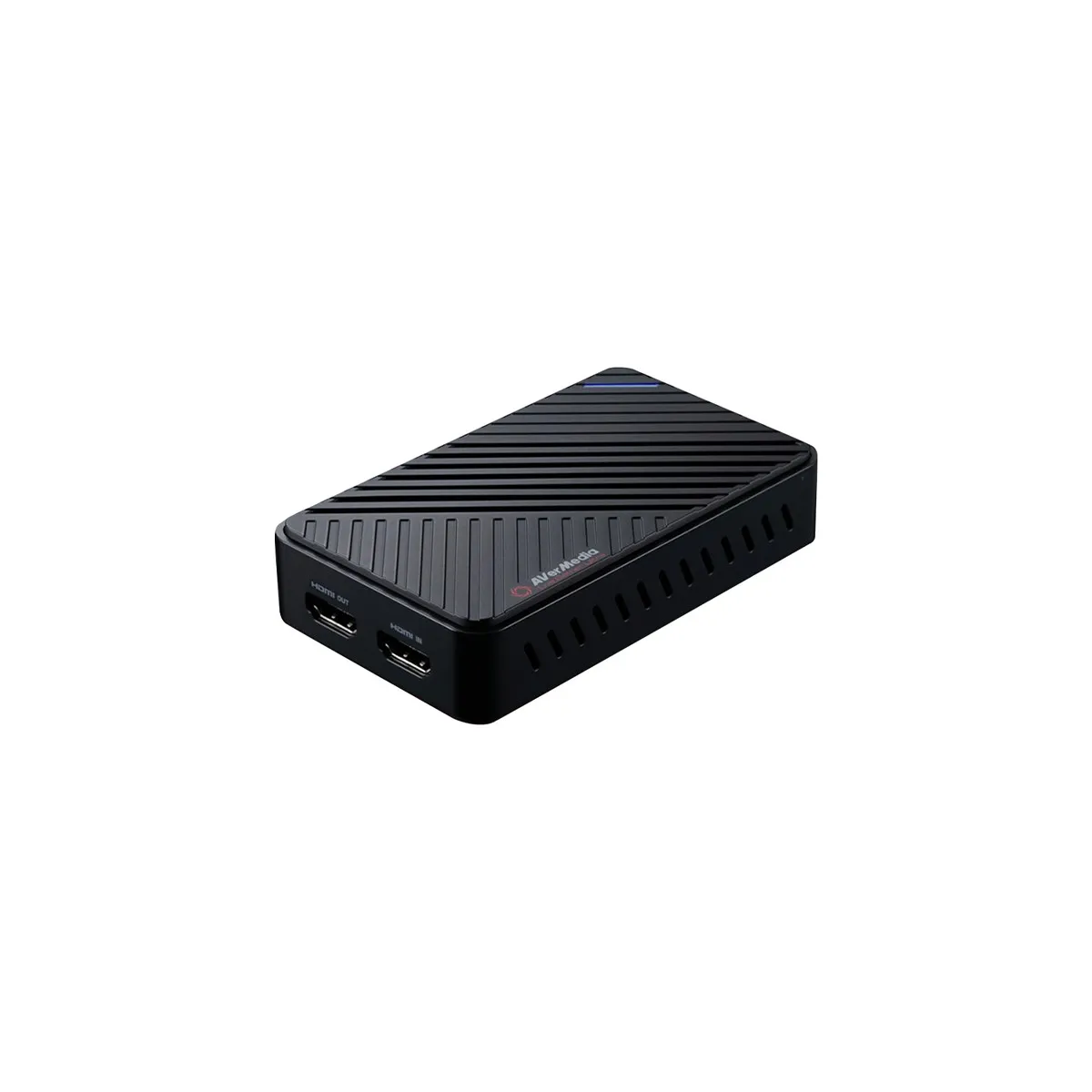

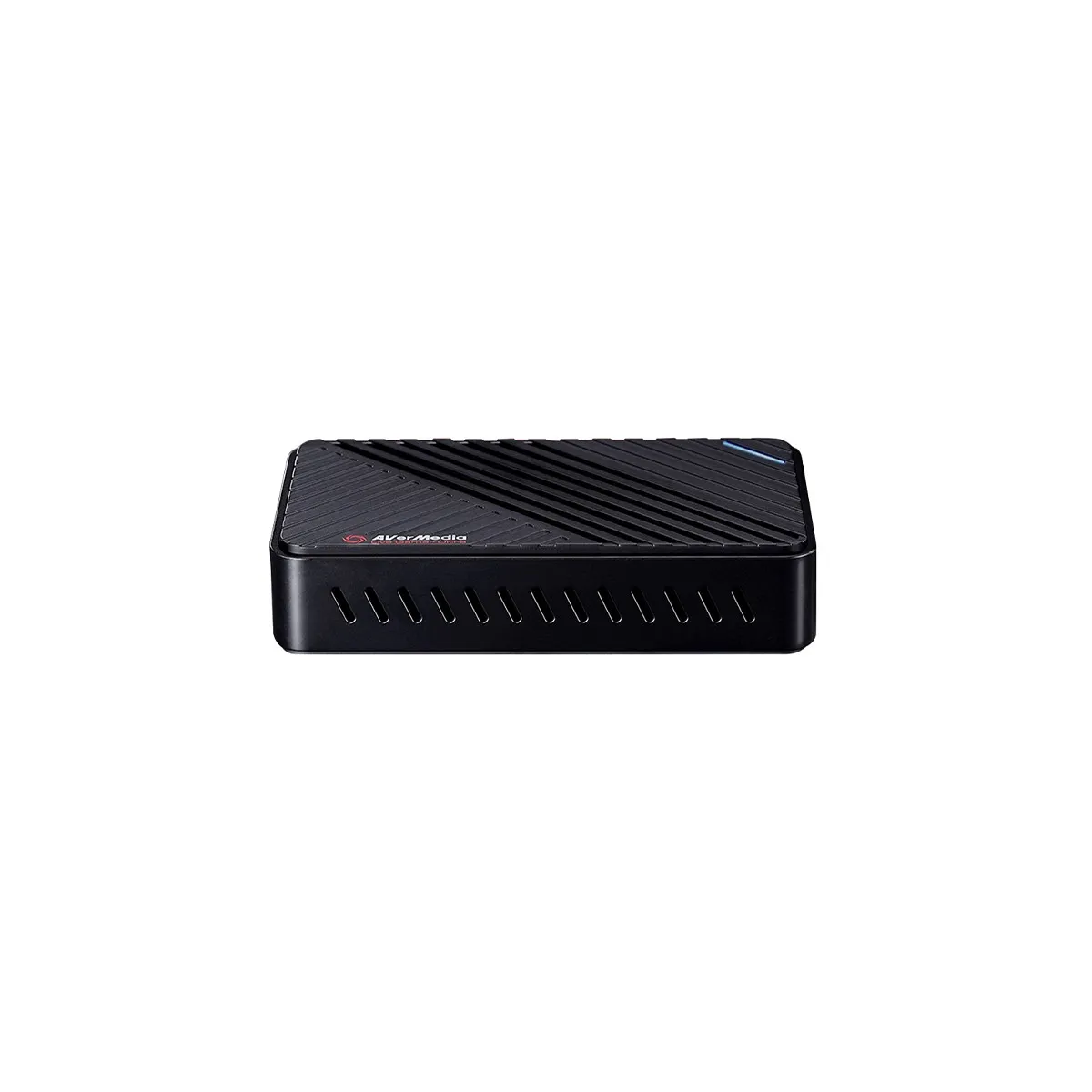

GC553 – Live Gamer ULTRA

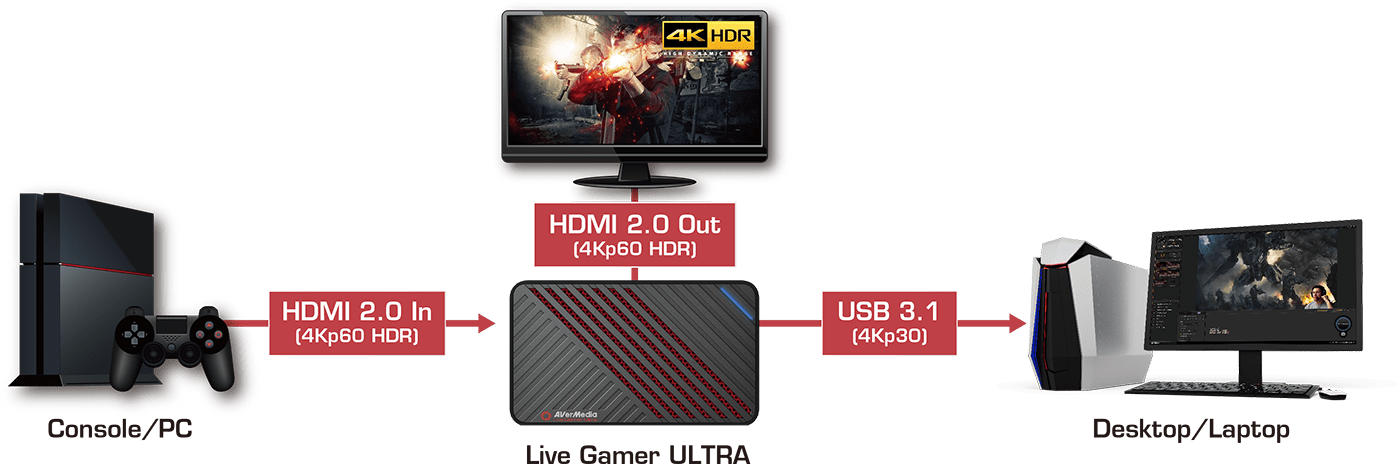

• Interface:USB 3.1 (Gen 1) Type C

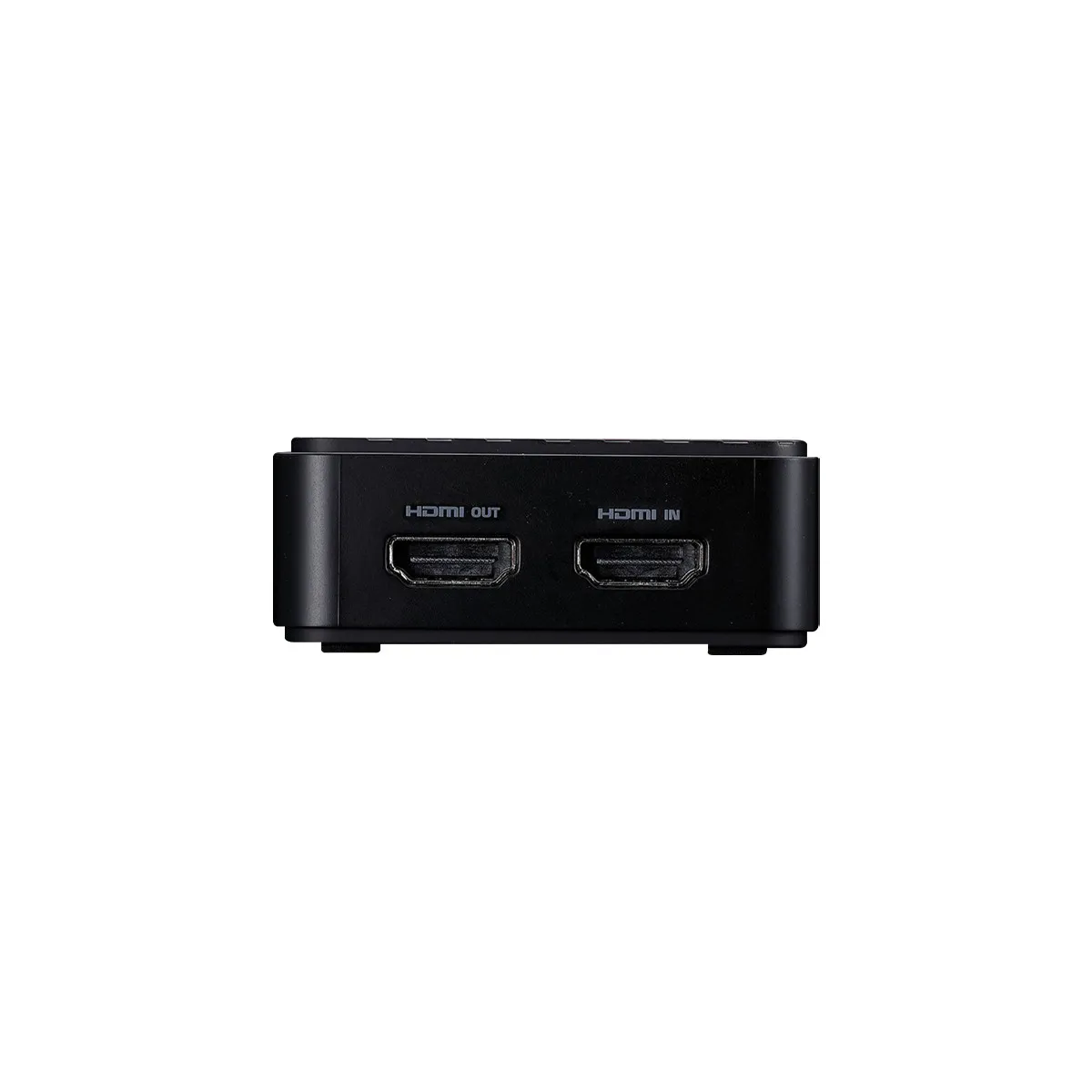

• Video Input:HDMI 2.0
• Video Output (Pass-Through):HDMI 2.0
• Audio Input:HDMI 2.0
• Audio Output (Pass-Through):HDMI 2.0
• Max Pass-Through Resolutions:2160p60 HDR /1440p144 / 1080p240
• Max Record Resolutions:2160p30 / 1440p60 / 1080p120 / 1080p60 HDR
• Supported Resolutions (Video input):2160p, 1440p, 1080p, 1080i, 720p, 576p, 480p
• Record Format:MPEG 4 (H.264+AAC) or (H.265+AAC)*
• Dimension (W x D x H):112.6 x 66.2 x 26 mm (4.43 x 2.6 x 1.02 in)
• Weight:116 g (4.09 oz.)
Notes:
*H.265 Compression and HDR are supported by RECentral
1. LGU does not support viewing/recording/streaming of HDCP protected signals

Operating sytem: Windows® 10 x64 (Support UVC Protocol)

For 4Kp30 or 1080p120 (4Kp60 HDR pass-through supported)

Desktop:

• Intel® Core™ i5-6XXX or above
• NVIDIA® GeForce® GTX 1060 or above
• 8 GB RAM (*Dual-channel)

Laptop:

• Intel Core i7-7700HQ or above
• NVIDIA® GeForce® GTX1050 Ti or above
• 8 GB RAM (*Dual-channel)
  *You have to set your memory on dual channel mode in your computer system. Please see attachment: attachment (Link)

For 1080p60 (4Kp60 HDR pass-through supported)

Desktop:

• Intel® Core™ i5-4440 3.10 GHz or above
• NVIDIA® GTX 660
• 4 GB RAM (8 GB recommended)

Laptop:

• Intel Core i7-4810MQ
• NVIDIA® GeForce® GTX 870M or above
• 4 GB RAM (8GB Recommended)


Mac system requirement :

Operating system: MacOS High Sierra 10.13 Mac Thunderbolt 3 (USB‑C) Cable (0.8 m)

For 4Kp30 or 1080p120 (4Kp60 HDR pass-through supported)

iMac:

• 3.6GHz quad-core Intel Core i7
• Radeon Pro 555 with 2GB of VRAM
• 16GB of 2400MHz DDR4 memory


MacBook Pro:

• 2.8GHz quad-core Intel Core i7
• Radeon Pro 555X with 2GB of GDDR5 memory
• 16GB 2133MHz LPDDR3 memory


For 1080p60 (4Kp60 HDR pass-through supported) :

iMac:

• 3.6GHz quad-core Intel Core i7
• Radeon Pro 555 with 2GB of VRAM
• 16GB of 2400MHz DDR4 memory


MacBook Pro:

• 2.6GHz quad-core Intel Core i7
• Radeon Pro 450 with 2GB of GDDR5 memory
• 16GB of 2133MHz LPDDR3 onboard memory


Notes:
1. LGU does not support USB 2.0
2. LGU does not support USB 3.1 Gen 2
3. We strongly recommended to use Intel chipset.
4. For 4K, HDR or High frame rate recording only NVIDIA graphics card are supported.

• Live Gamer Ultra (GC553)
• HDMI 2.0 cable
• Type C to Type A Cable
• Quick guide
• CyberLink PowerDirector 15 Product Key Card* Notes:
*4K video editing software. Does not support HEVC encoded files or HDR editing. Please note that this version of PowerDirector 15 is not the retail version and some functionalities may be restricted or require paid upgrades.
